150W Solar Panel

150W SOLAR PANEL

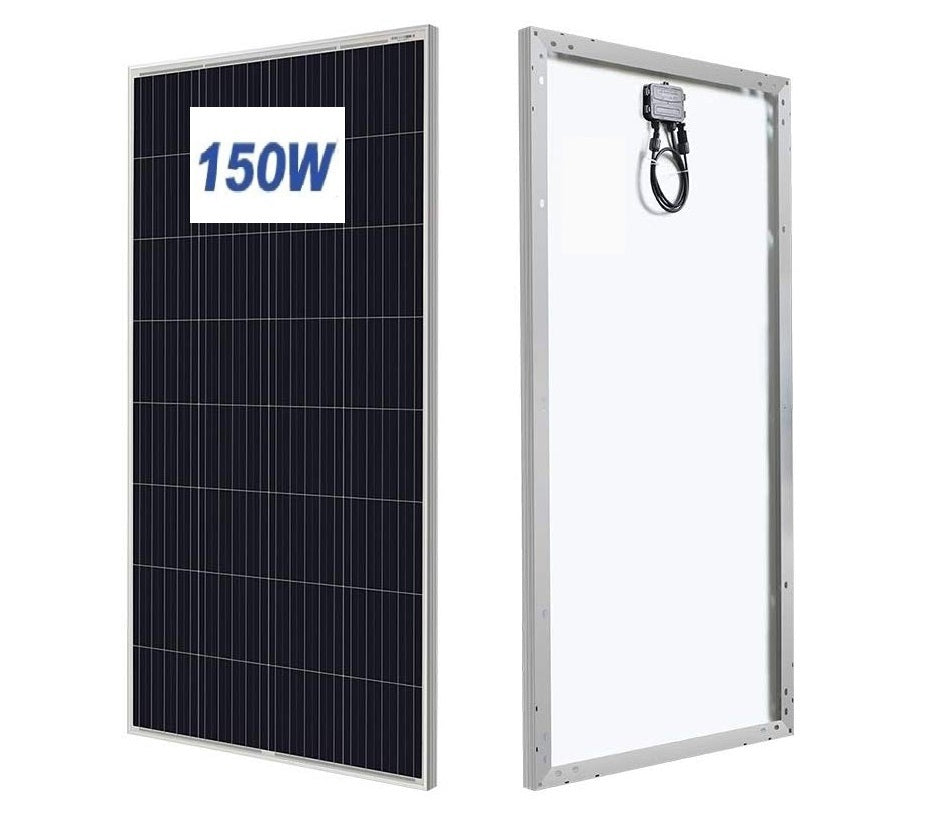

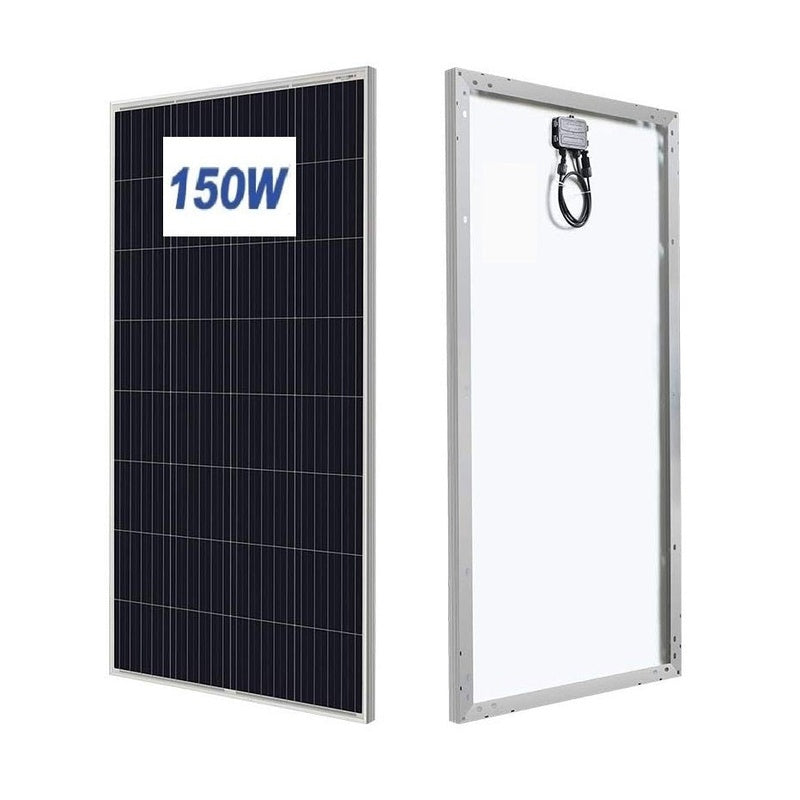

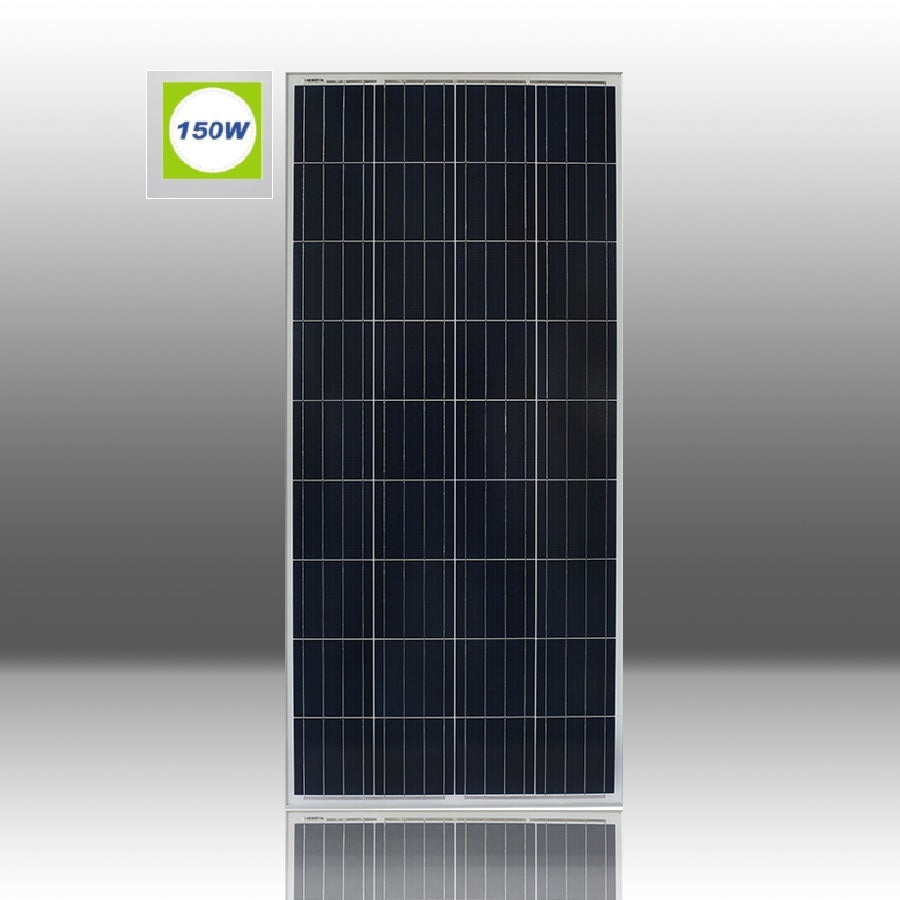

150W Polycrystalline Solar Panel Photovoltaic – Solar Panel for Boat, Caravan, RV and Home Solar System

High-efficiency 150W Polycrystalline Solar Panel designed for reliable off-grid power. This Solar Panel is ideal for boats, caravans, motorhomes, cabins, and home solar systems. Built with a strong aluminium frame and toughened glass, this Solar Panel is designed for durability and long-term outdoor performance.

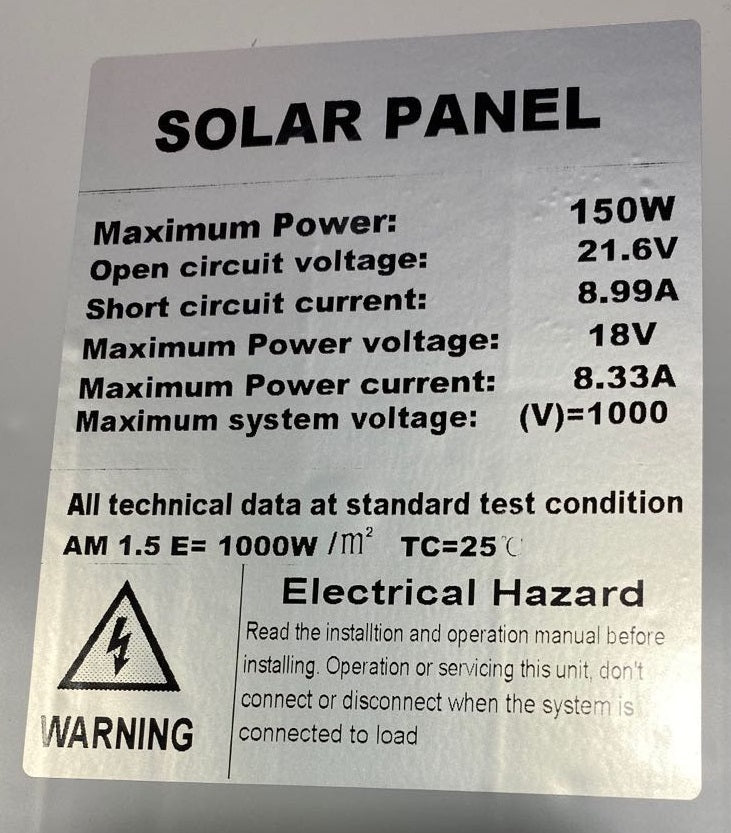

Solar Panel Specifications

• Maximum Power (Pmax): 150W

• Maximum Power Voltage (Vmp): 18.0V

• Maximum Power Current (Imp): 8.33A

• Open Circuit Voltage (Voc): 21.6V

• Short Circuit Current (Isc): 9.17A

• Power Tolerance: ±3%

• Maximum System Voltage: DC 1000V

• Cable Length: 1m

• Weight: 9.85 kg

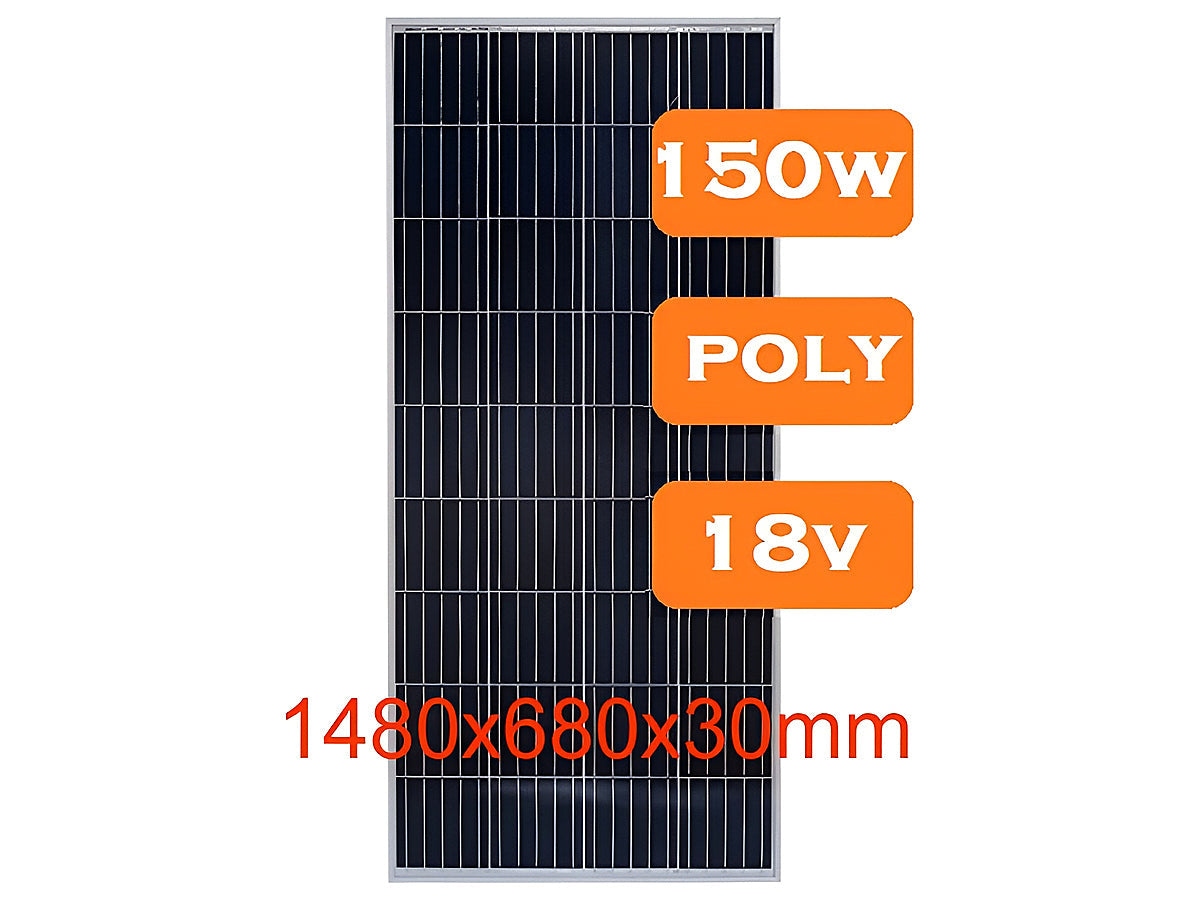

• Solar Panel Size: 1480 × 680 × 35 mm

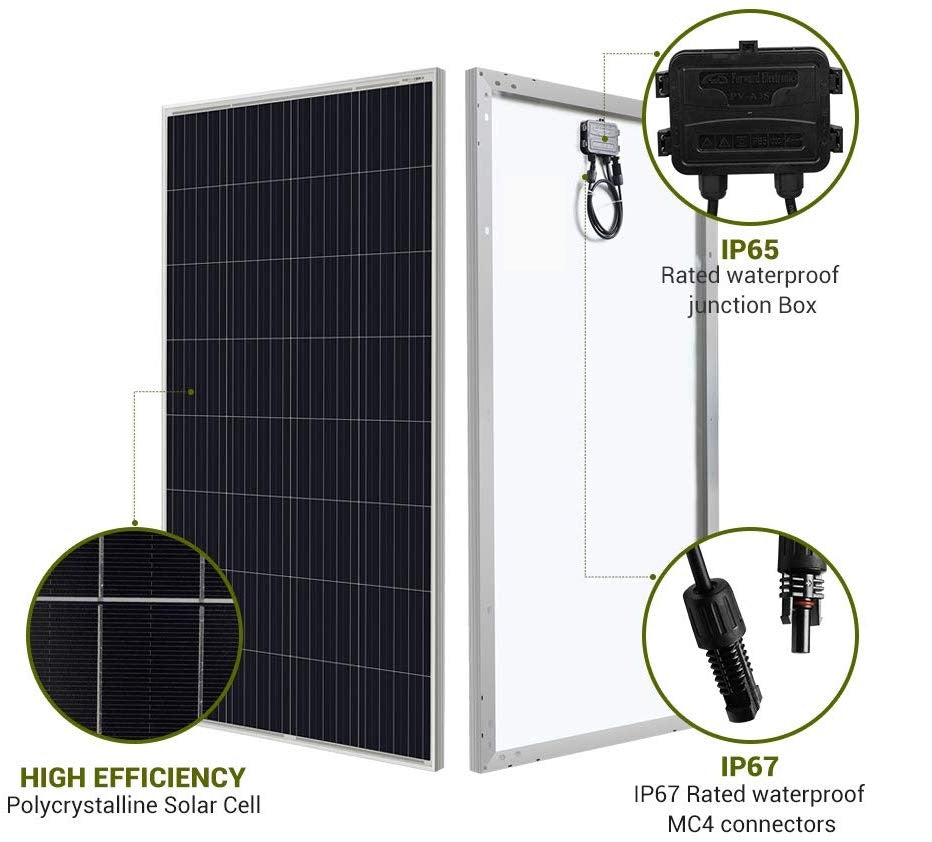

Solar Panel Features

• Lightweight Solar Panel design

• Rigid anodised aluminium alloy frame

• Toughened glass protection

• High efficiency photovoltaic Solar Panel performance

• Reliable Solar Panel for outdoor installations

Solar Charge Controller Specifications

• Battery Voltage: 12V / 24V Auto

• Charging Current: 30A

• Discharging Current: 30A

• Max Solar Input:

  • 50V (for 24V battery)

  • 25V (for 12V battery)

Charging Settings

• Equalization:

  • 14.4V (Sealed Battery)

  • 14.2V (Gel Battery)

  • 14.6V (Flooded Battery)

• Float Charge: 13.7V (default, adjustable)

• Discharge Stop: 10.7V (default, adjustable)

• Discharge Reconnect: 12.6V (default, adjustable)

Operating Temperature: -35°C ~ +60°C

Solar Panel Applications

This Solar Panel can be used in many solar power applications including:

• Solar Panel for Power Stations

• Solar Panel for Solar Power Generation Systems

• Solar Panel for Street Lights

• Solar Panel for Garden Lights

• Solar Panel for Caravan and RV Solar Systems

• Solar Panel for Boats and Marine Use

• Solar Panel for Solar Cars

• Solar Panel for Off-Grid Solar Systems

• Solar Panel for many other solar energy applications

Package Includes

• 1 × High Efficiency 150W Polycrystalline Solar Panel

Note: Wiring is included as shown in the photo. No extra wiring is included. You can purchase MC4 cable for Solar Panel separately from us if required.
