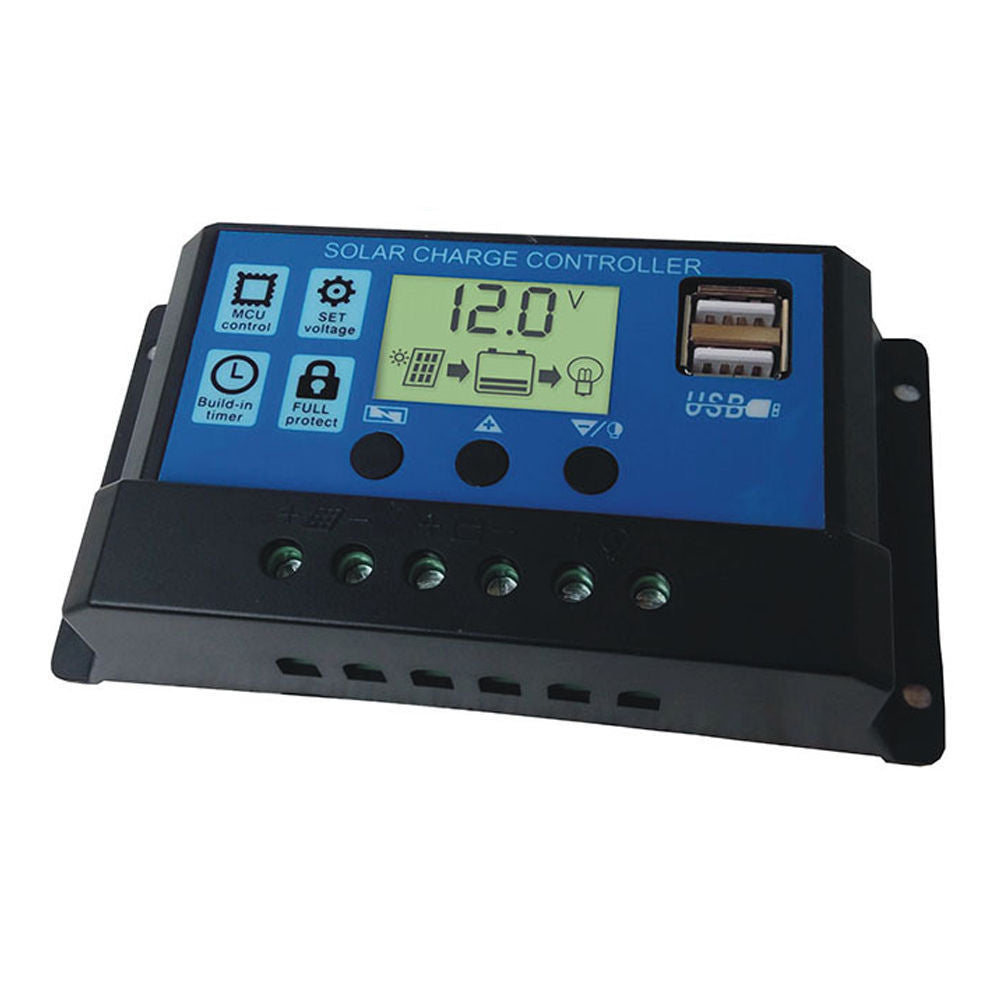

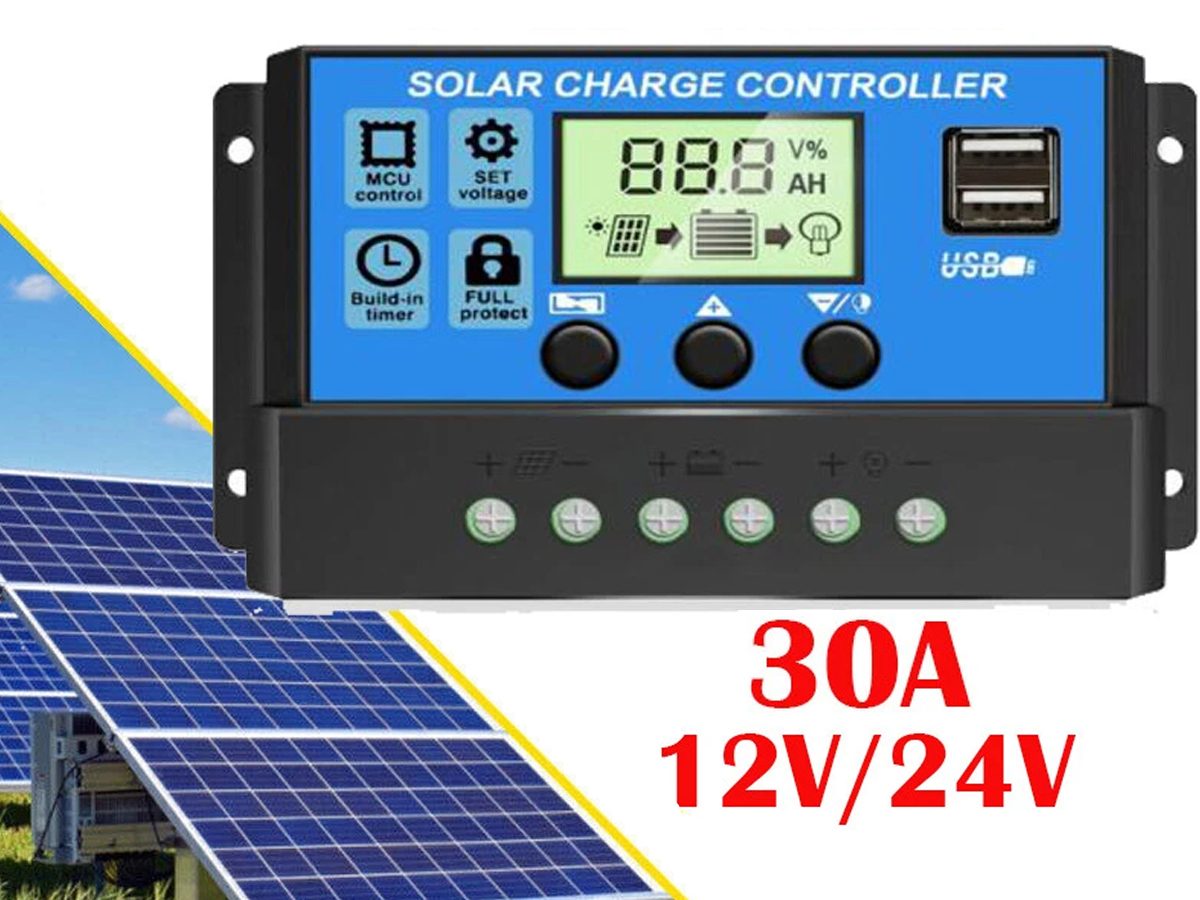

30A Solar Controller

PWM 30A Solar Panel Charge Controller Intelligent Regulator for 12V/24V Auto with Big LCD & USB Output

Key Features:

• Auto 12V/24V Detection: Automatically adapts to 12V or 24V battery systems.
• High Capacity: Rated for 30A charging and discharging currents.

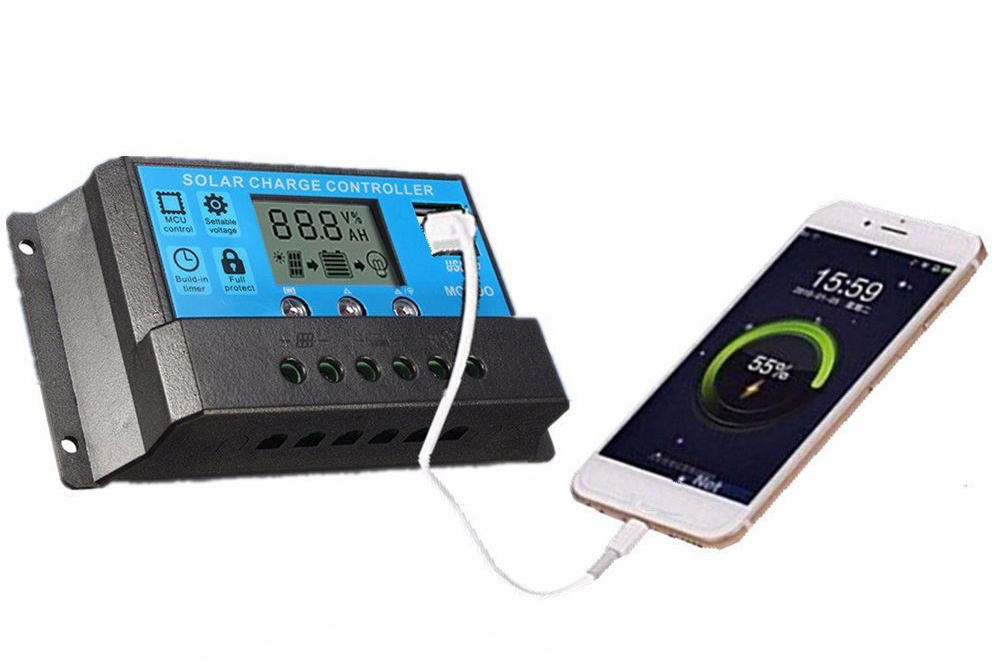

• Dual USB Output: Provides 5V/2A max output, suitable for charging devices.
• 4-Stage PWM Charge Management: Ensures efficient battery charging with float, bulk, and absorption charging stages, enhancing battery life.

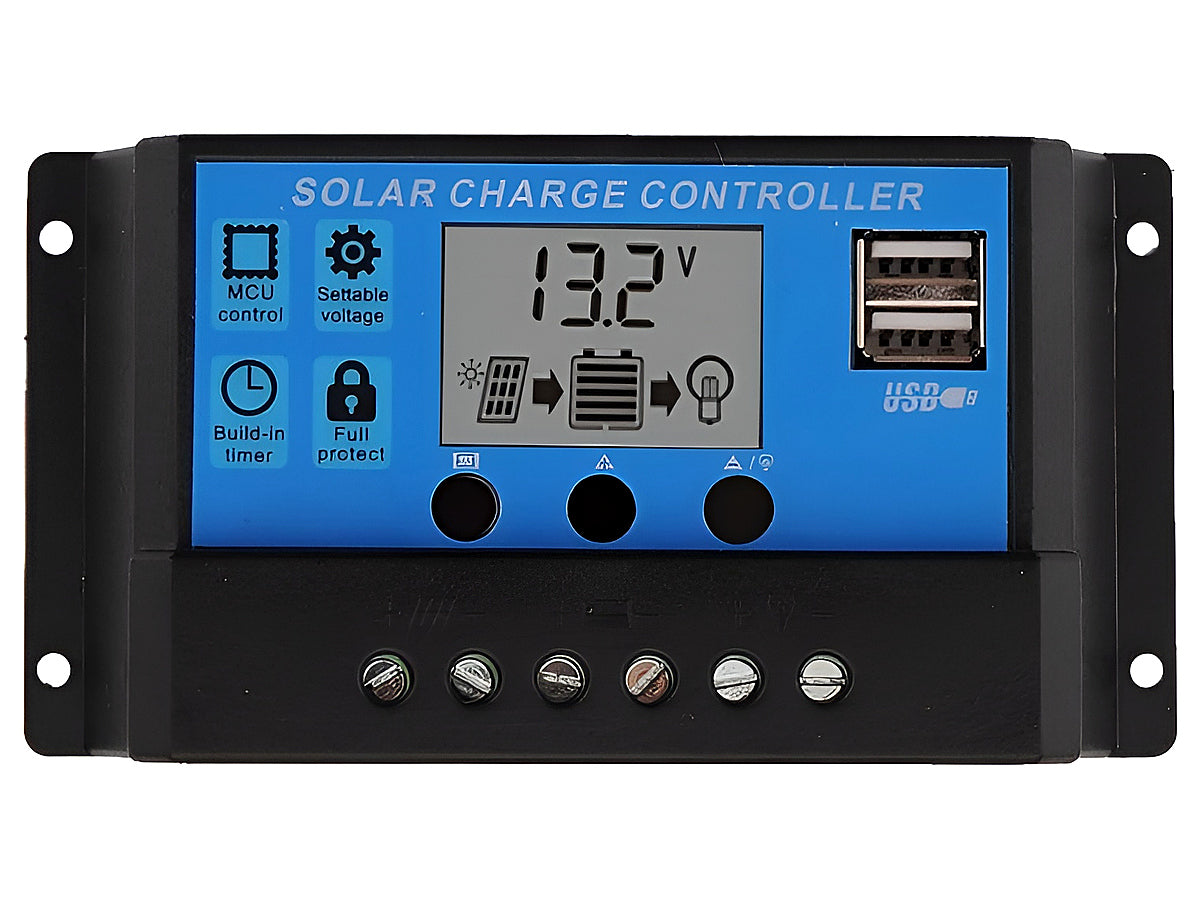

• LCD Display: Shows real-time data, including battery status, load status, and system parameters, with adjustable settings for operation modes and load times.
• Built-in Protections: Includes reverse polarity, short circuit, overload, and open circuit protection.
• Dual MOSFET Technology: Ensures low heat production and prevents reverse current flow.
• Adjustable Parameters: Charge and discharge parameters can be customized based on battery type and user needs.
• Battery Compatibility: Supports GEL, Lead-Acid, and Flooded batteries.

Specifications:

• Battery Voltage: 12V/24V (Auto-switching)
• Charging Current: 30A
• Discharging Current: 30A
• Max Solar Input: 50V (for 24V systems), 25V (for 12V systems)
• Equalization Voltage: 14.4V (Sealed), 14.2V (Gel), 14.6V (Flooded)
• Float Charge Voltage: 13.7V (adjustable)
• Discharge Stop Voltage: 10.7V (default, adjustable)
• Discharge Reconnect Voltage: 12.6V (default, adjustable)
• Operating Temperature: -35°C to +60°C

Protection Features:

• Short-circuit protection
• Reverse current protection
• Reverse polarity protection
• Overload protection
• Open-circuit protection

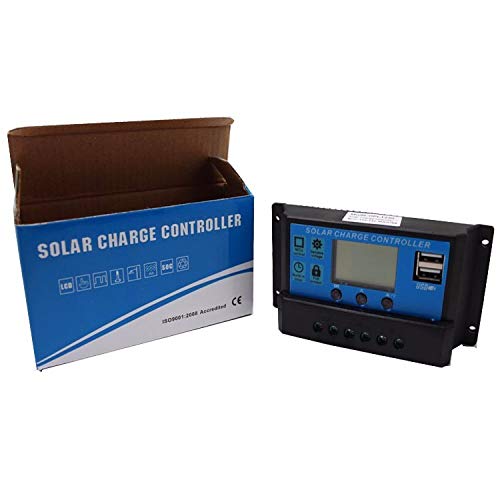

Package Includes:

• 1 x 30A Solar Charge Controller
• 1 x English User Manual

This charge controller is perfect for home solar PV systems, providing reliable and efficient management of battery charging with advanced protection and adjustable settings.
