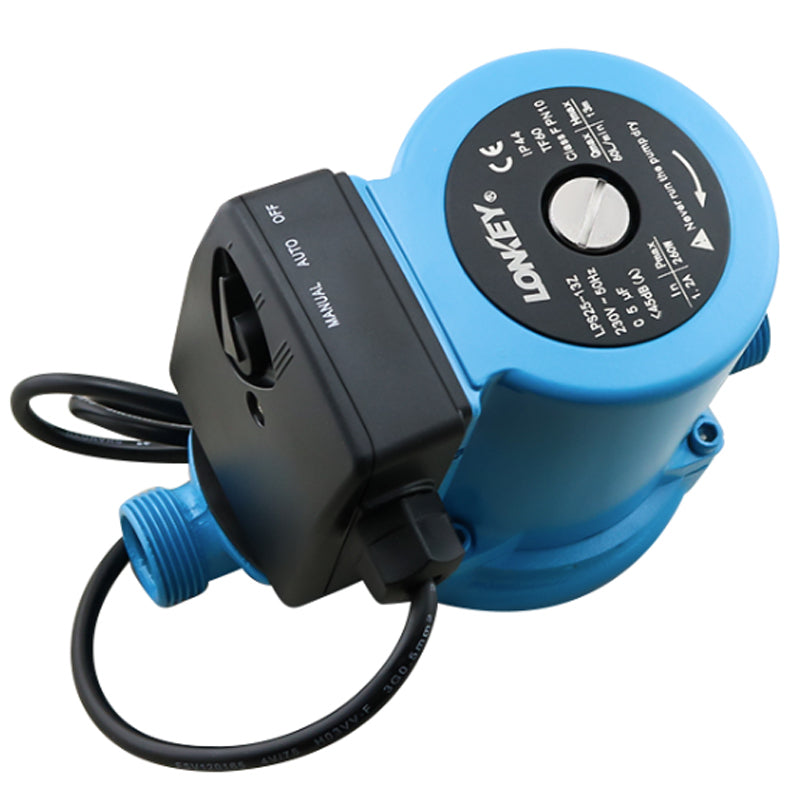

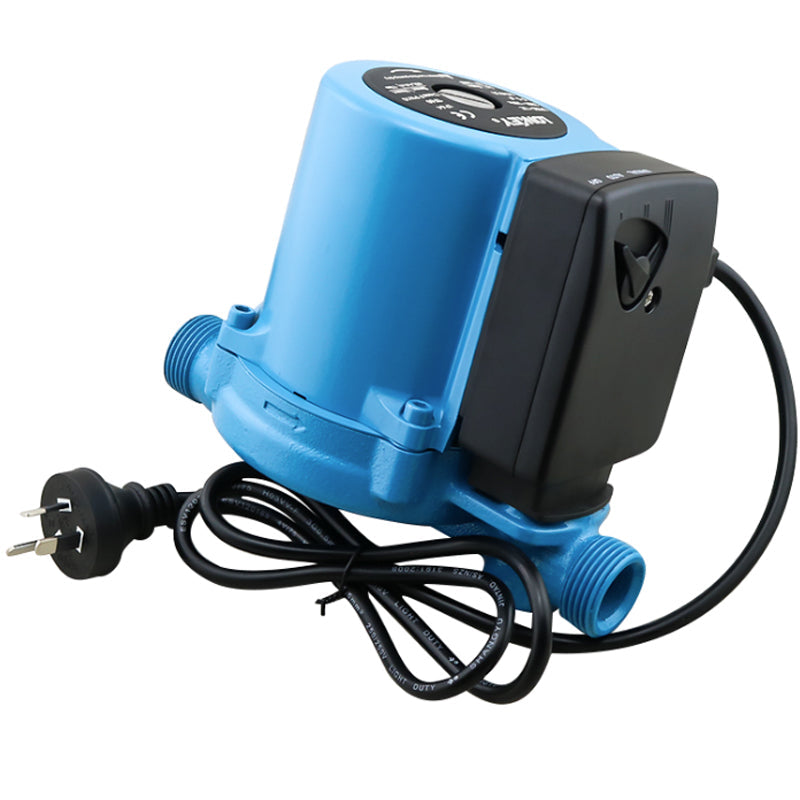

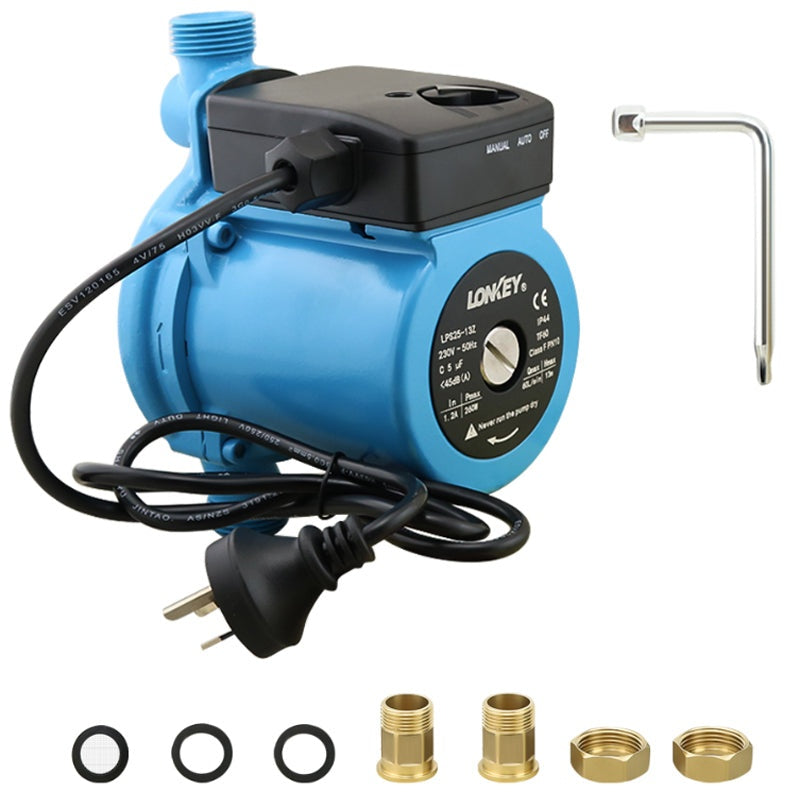

Hot Water Booster Pump 260W

260W Automatic Hot Water Circulation Pump for Household Lps25-13z


Technical Data
-Liquid temperature range: -10 - 110°C
-Pipe size: G1.5'', DN25MM
-Port to port length: 180mm
-Max. operating pressure: 6bar
-Pressure stage, pipe connection: PN10
-Max flow:65l/min
-Max head:13m
-Max input power.: 260W
-Circulator Pump
-Silence <45dB(A) past test, no leakage, environment peaceful, easy installation

Electrical Data

Power: 260W
Max. Current: 1.2A
Capacitor size: 5uf


Specifications
-circulator pump, wet rotor type, 304S.S.
-no noise <45dB(A), no leakage, environment peaceful, easy installation
-Energy saving hot water Circulation pump

-This circulation pump especially designed for heating system and used to supply water
and add pressure for mansions of city,villa of subarb,house,to match with industrial equipment,
to supply water in cycle for cooling air-condition,boiler and solar energy,suppy hot andwater and keep warm cycle.

Construction Material
- Motor wire:copper
- Motor shell: aluminium
- Rotor can: stainless steel 304
- Impeller: Ceramic
- Pump body: Iron
