This circulation pump is especially designed for heating system and used to supply water and add pressure for suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating water, hot water circulating warm and so on.
-High efficiency with low consumption. -High temperature resistance, anti-fraying, high flow and leak-tightness. -Super silent, environmental peaceful, aesthetics, easy to install and operate. -Longer life and better performance -Easy to install and operate -Suitable for a wide range of applications -AS/NZS 3112:2011 Power supply
Specifications -Motor wire: Copper -Motor shell: Aluminium -Rotor can: Stainless Steel 304 -Impeller: PP -Pump body: Cast Iron -Shaft: Ceramic/S,S -Bear: Ceramic/Graphite -Port to port length: 160mm (6.3 inches) -Voltage/Frequency: NZ standard, -Rated power: 120W -Max pressure: 145 psi (10 bar) -Max flow: 27 l/min -Max head: 9 m (29.53 ft) -Inlet/Outlet: 3/4 x 3/4 inch (19.05 x 19.05 mm) -Protection class: IP44 -Liquid temperature range: -10-110℃ (14-230℉) -Max ambient temperature: 40℃ (104℉) -Suitable for medium: Hot water and ethanol maximum ratio of 1:1

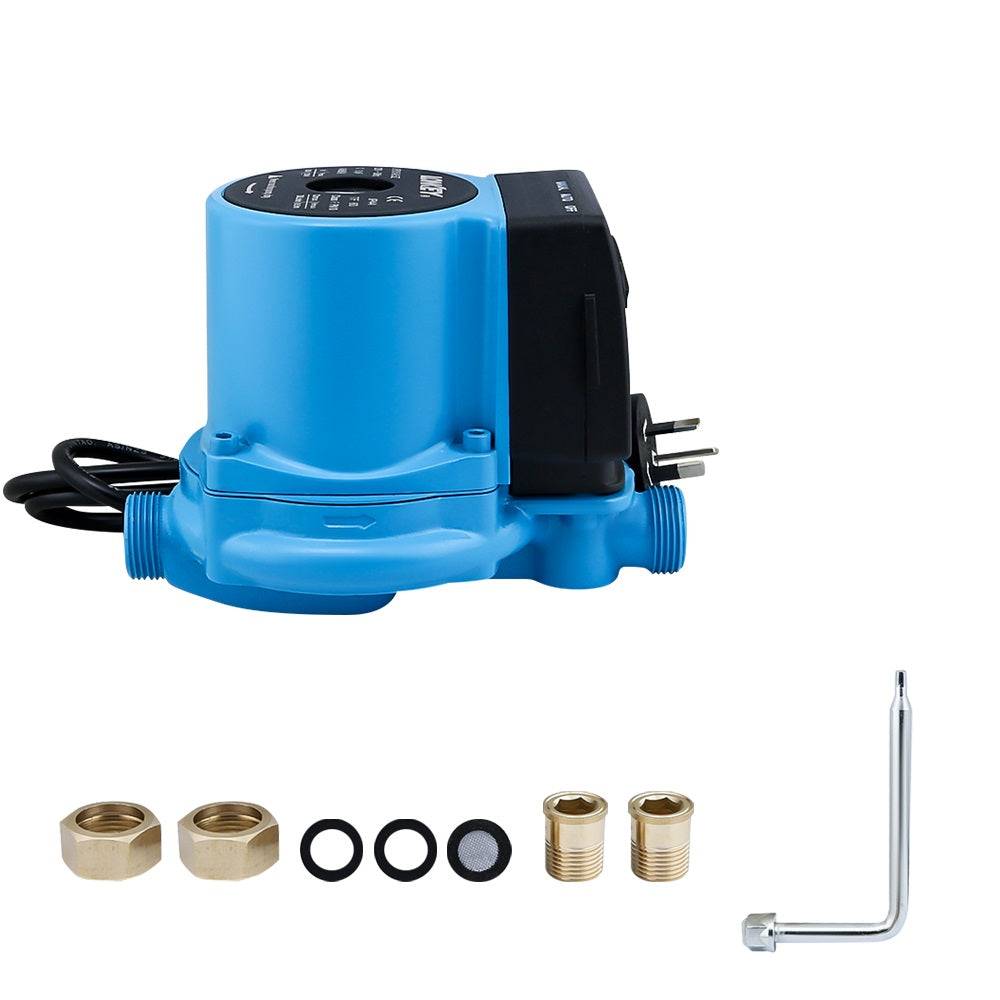

Package Content 1 x Water Circulation Pump 2 x Coupling 2 x O-Ring Seal 1 x O-Ring Filter 1 x Manual
