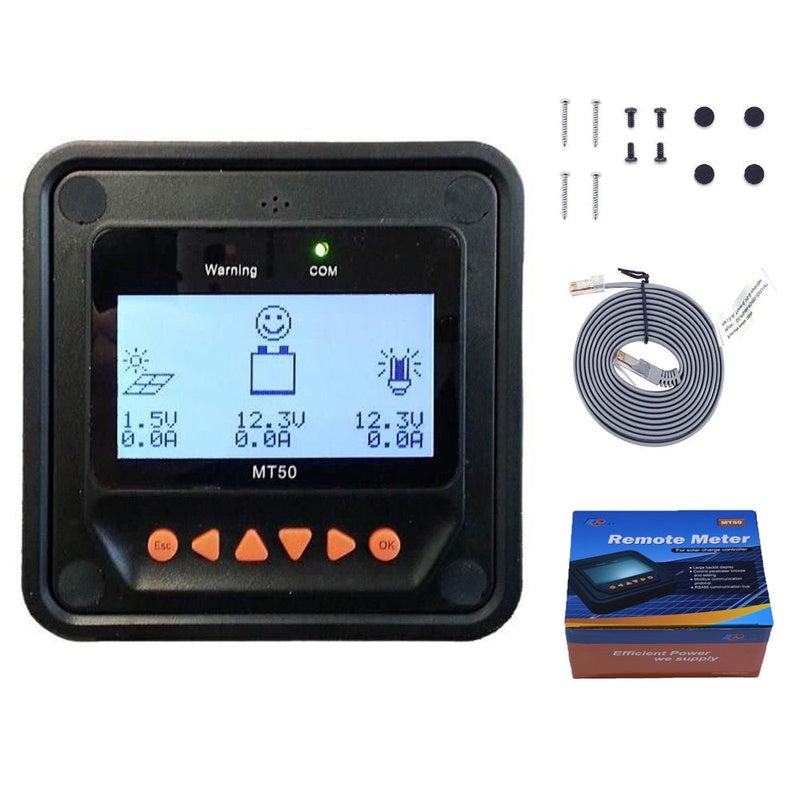

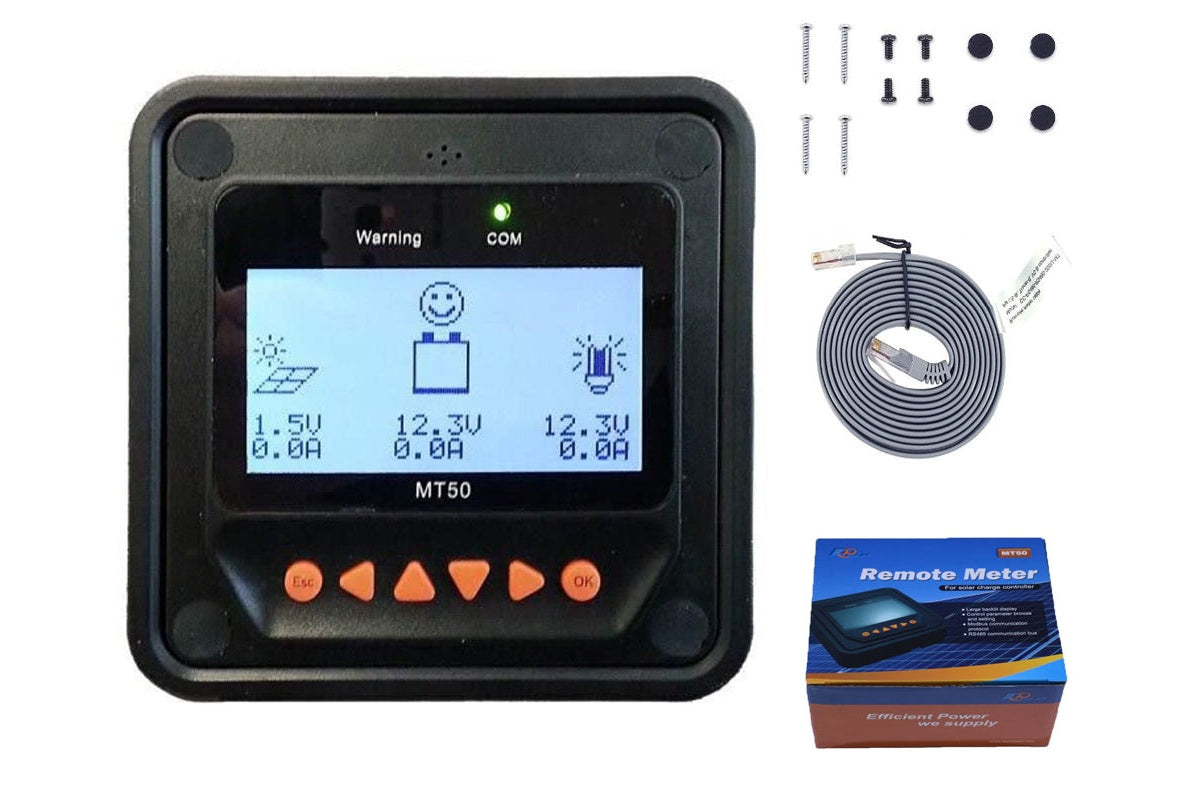

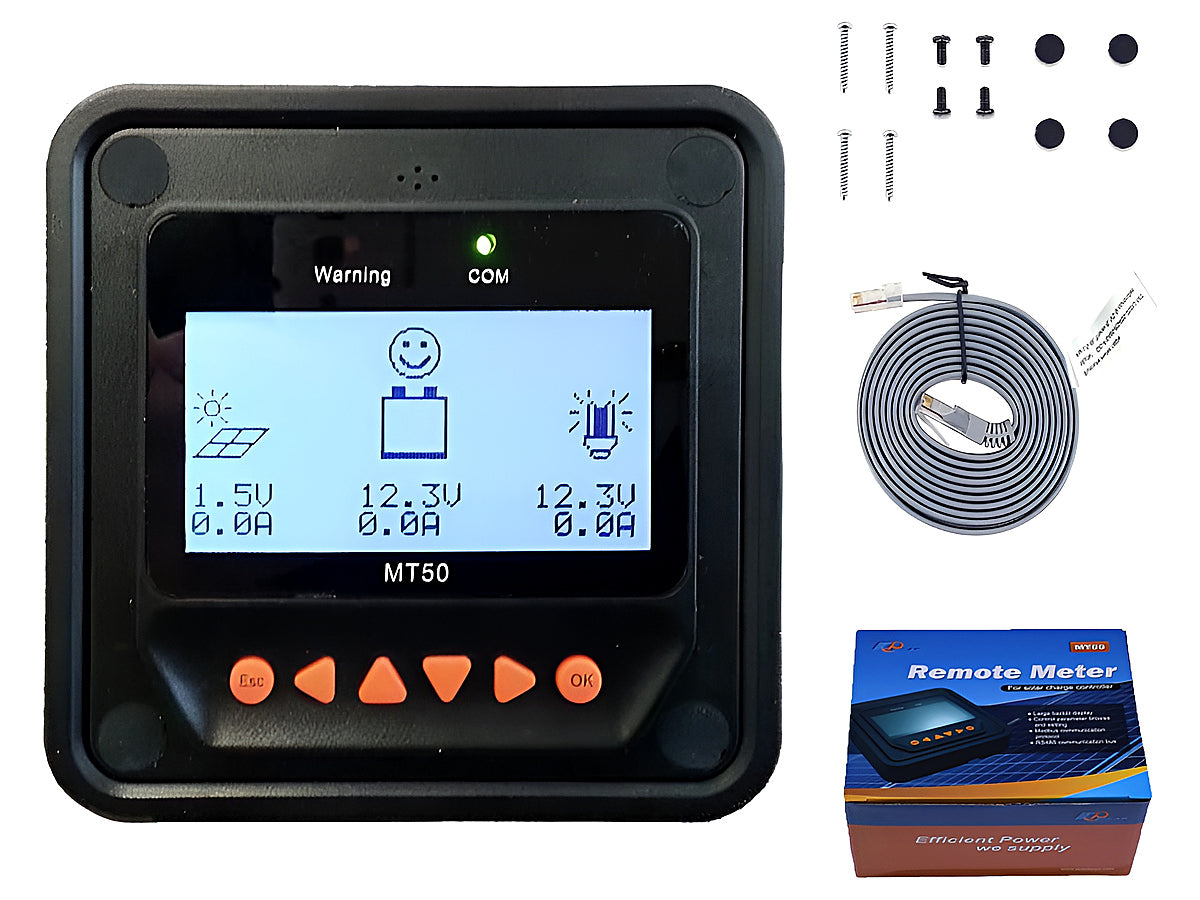

EP Solar Tracer MPPT Remote MT-50 for BN and A Series

EP Solar Tracer MPPT Remote MT-50 for BN, A and AN Series EPever MT50 Remote Display for Tracer-AN Tracer-BN

MT50 is an optional remote meter to monitor and program EPsolar controller, compatible with:Tracer-AN Series Tracer-BN Series

Solar Tracer features:
MT50 Solar Tracer automatic identify the controller, and display relevant parameter data
Large-screen informative LCD displays all the operating data and system working status
Simple and convenient operation tracer
Real-time alarm of failure information
Longer communication distance based on RS485
Diversified load control modes : Manual Control, Light ON/OFF, Light ON+ Timer, Time Control
Battery type selection: Gel, sealed, flooded and User(programable)
Solar tracer has Programmable parameters
Energy statistics display function
More powerful function Via MT50

Solar Tracer Specification

Self-consumption:Backlight and acoustic alarm on<65mA, Backlight on<23mA,Backlight off <15mA

Faceplate dimensions:98x98 mm / 3.86×3.86 in

Frame dimensions:114×114 mm / 4.49×4.49 in

Connector type:RJ45

Meter cable:Standard 2m, max .50m

Meter weight:0.190 Kg

Ambient Temperature:-20 -+70C/-4 F-158F

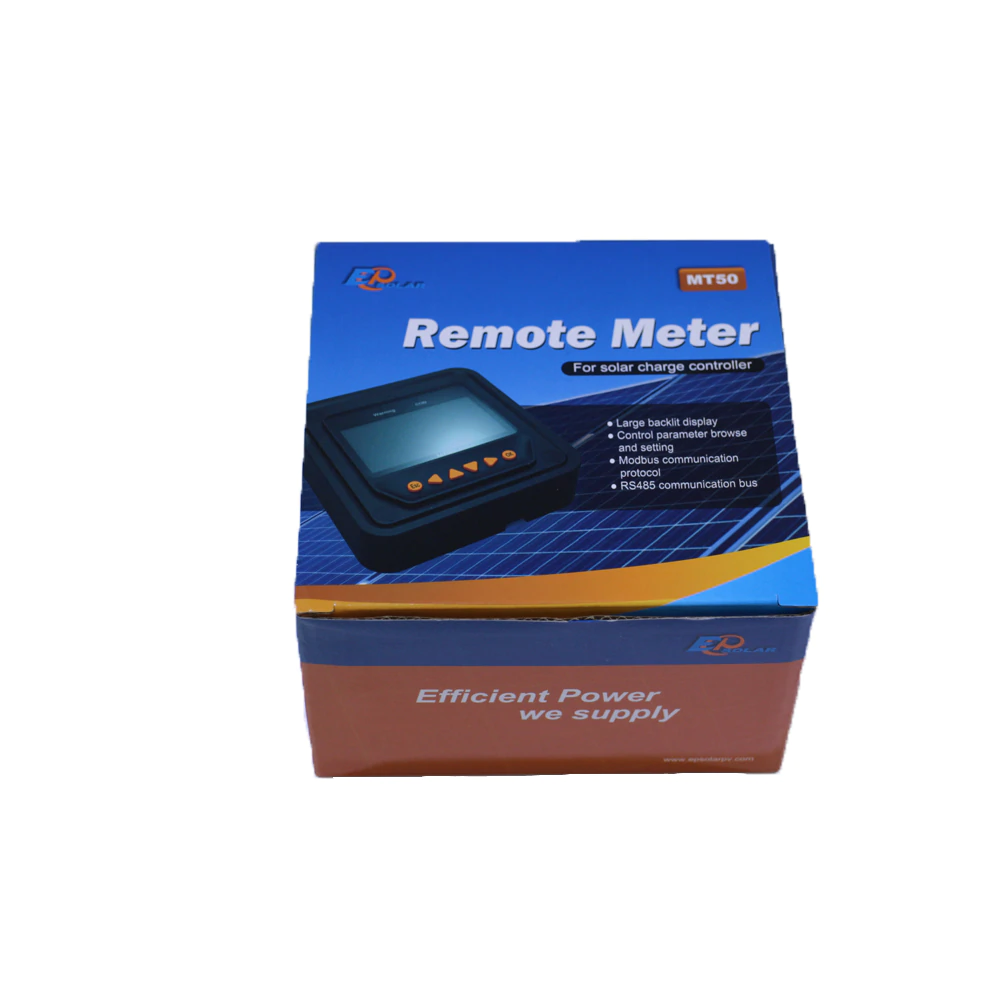

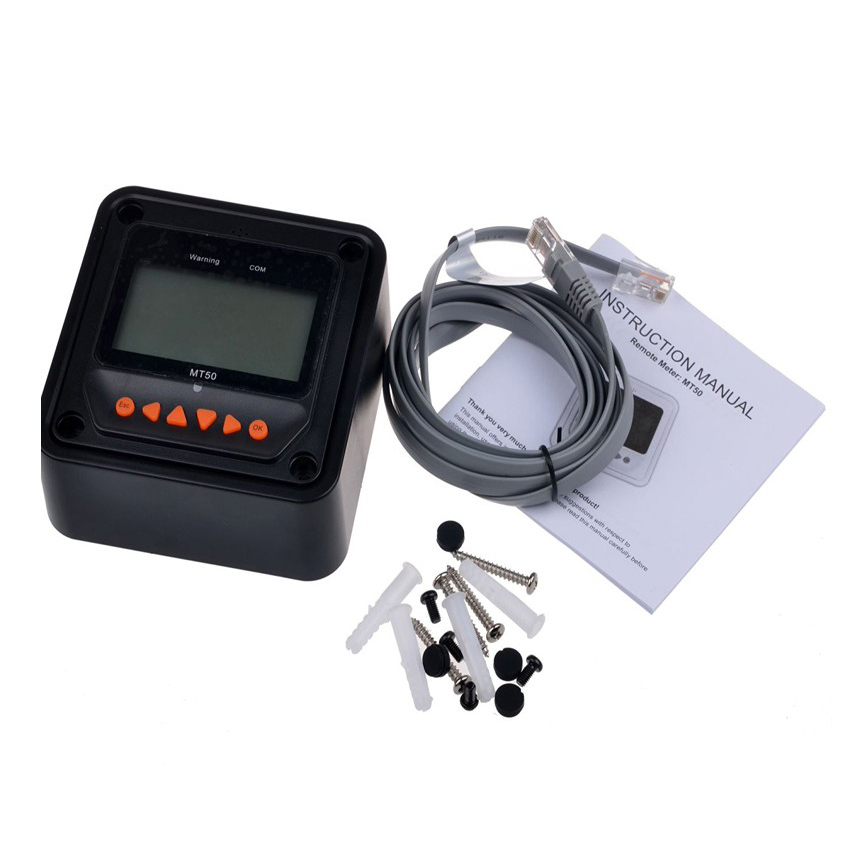

Comes complete, boxed with manual, screws and mount. Can be mounted flush or via the supplied framing.
