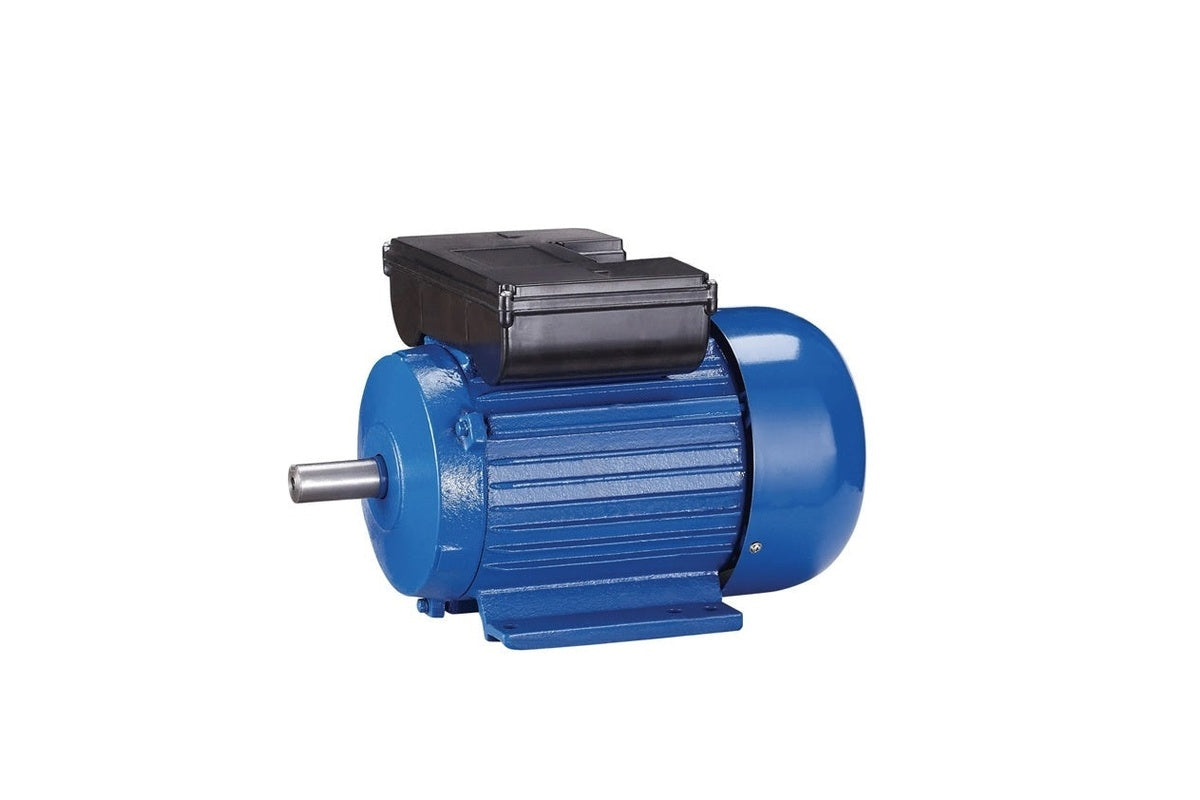

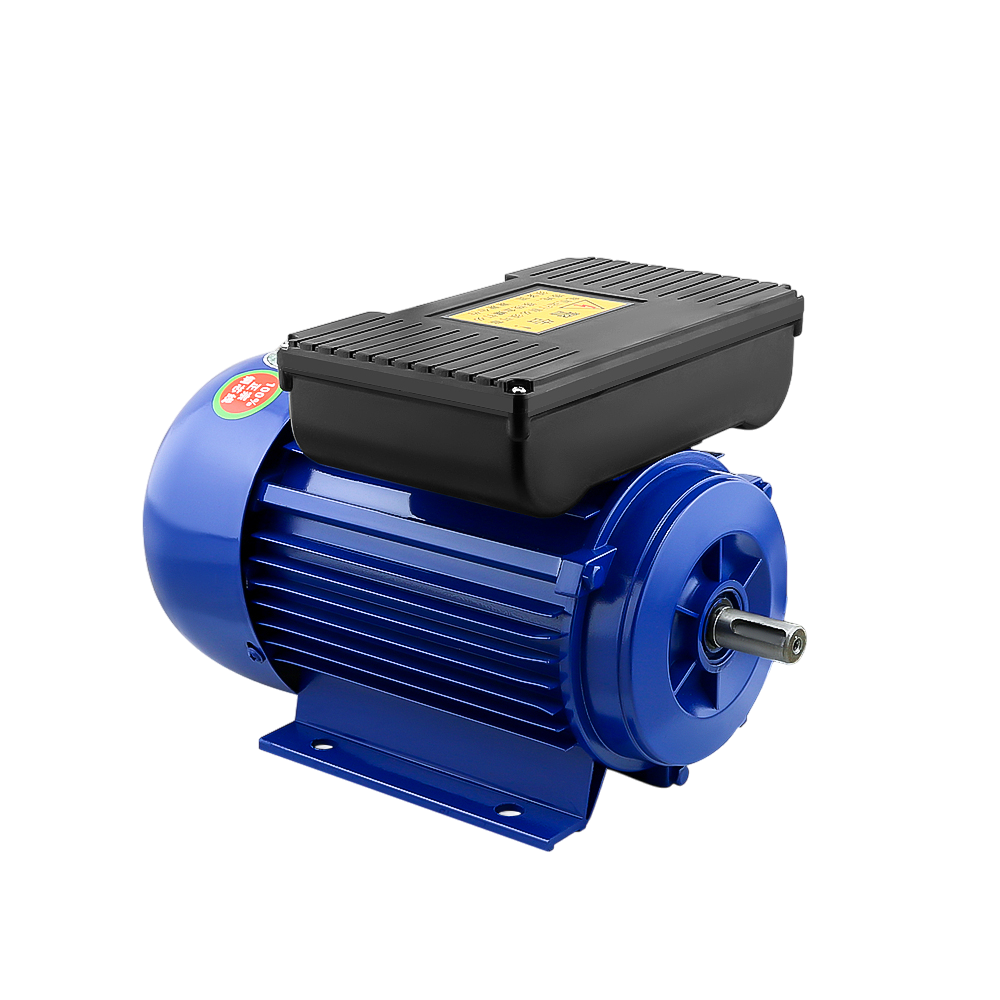

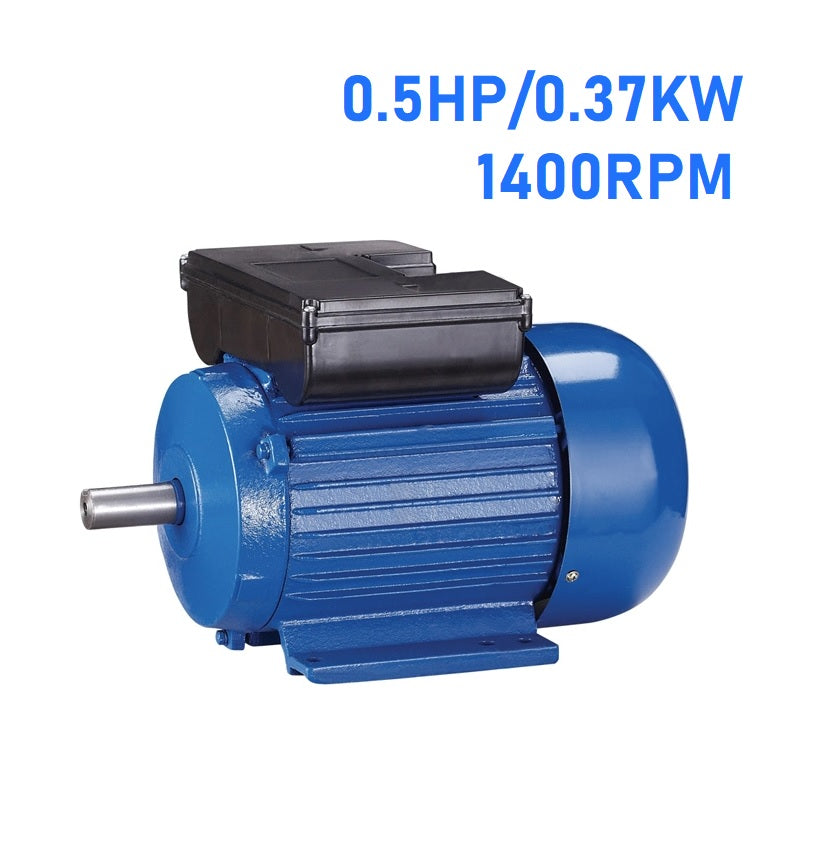

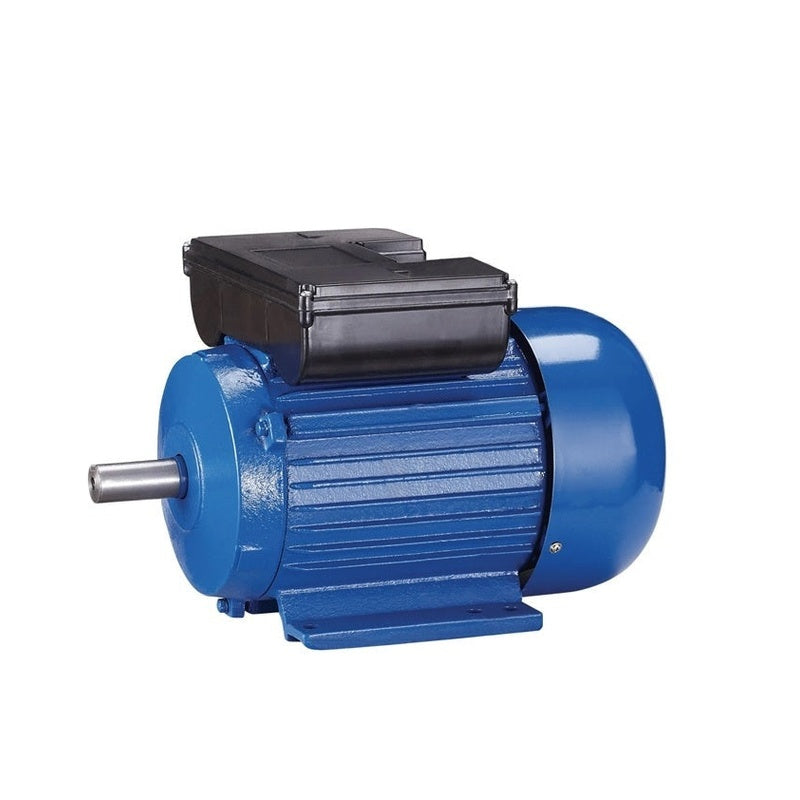

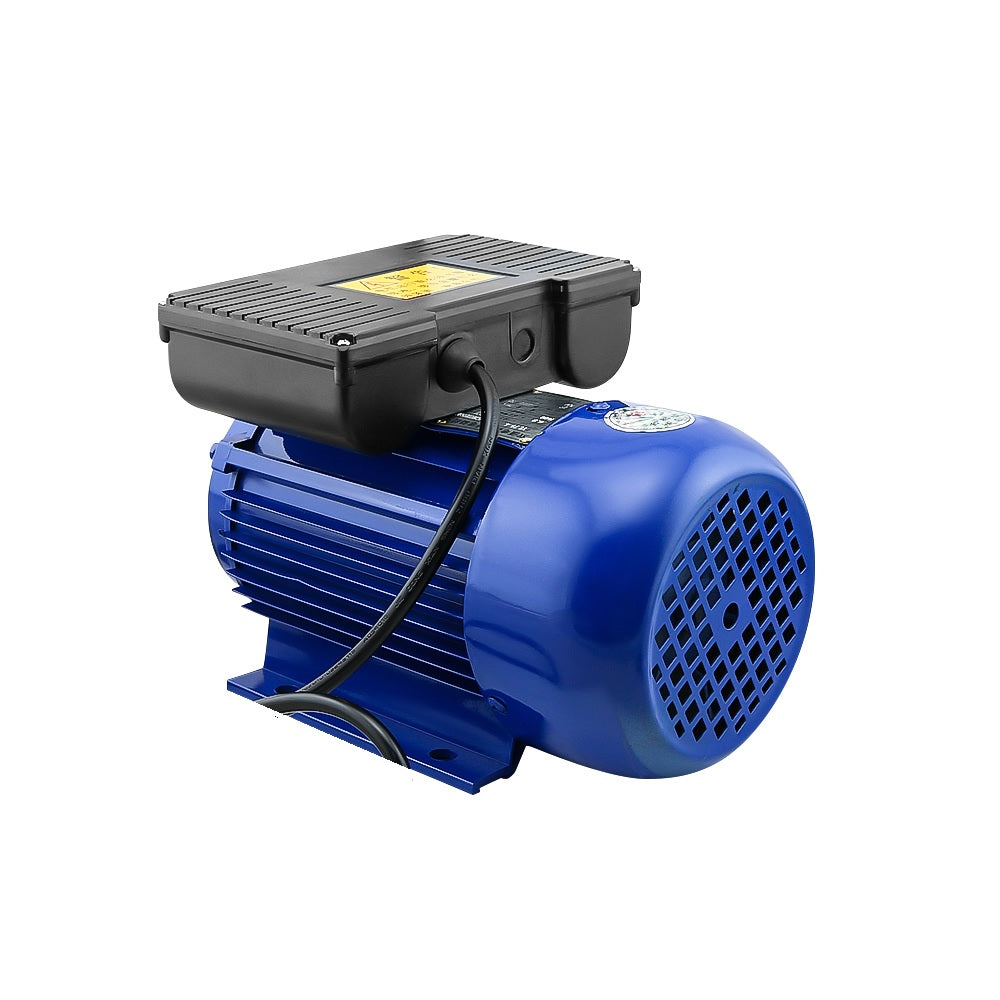

Electric Single Phase Motor 0.5Hp 0.37Kw 1400Rpm

Electric Motor 0.5HP 0.37KW 1400RPM Single Phase 4 Pole
Shaft size: 14mm
Shaft length: 32mm "

Cast Iron Housing Electric Motor
Single-Phase Dual-Capacitor Motor


Baseplate size: 165mm W x 170mm L
Mounting holes: 140mm x 125mm or 140 x 100mm
Body size (without shaft): 290mm L x 200mm W x 220mm H

Horsepower: 0.5HP
Rated power: 0.37kw
Protection class: IP44
Insulation class: B
Rotating speed: 1400r/min
Starting Capacitor: 300 uF/250V

Running Capacitor: 50 uF/400V Electric Motor

These motors are widely used in air compressors, pumps, fans, refrigerators, medical instruments as well as small machines, etc. especially for the occasion where only single-phase power supply is available Electric Motor.
