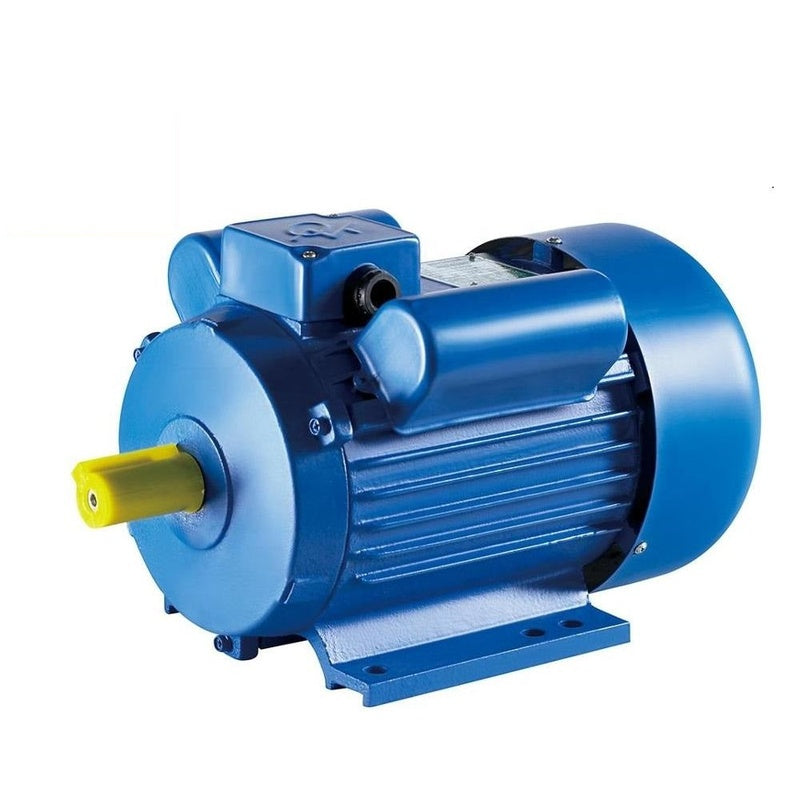

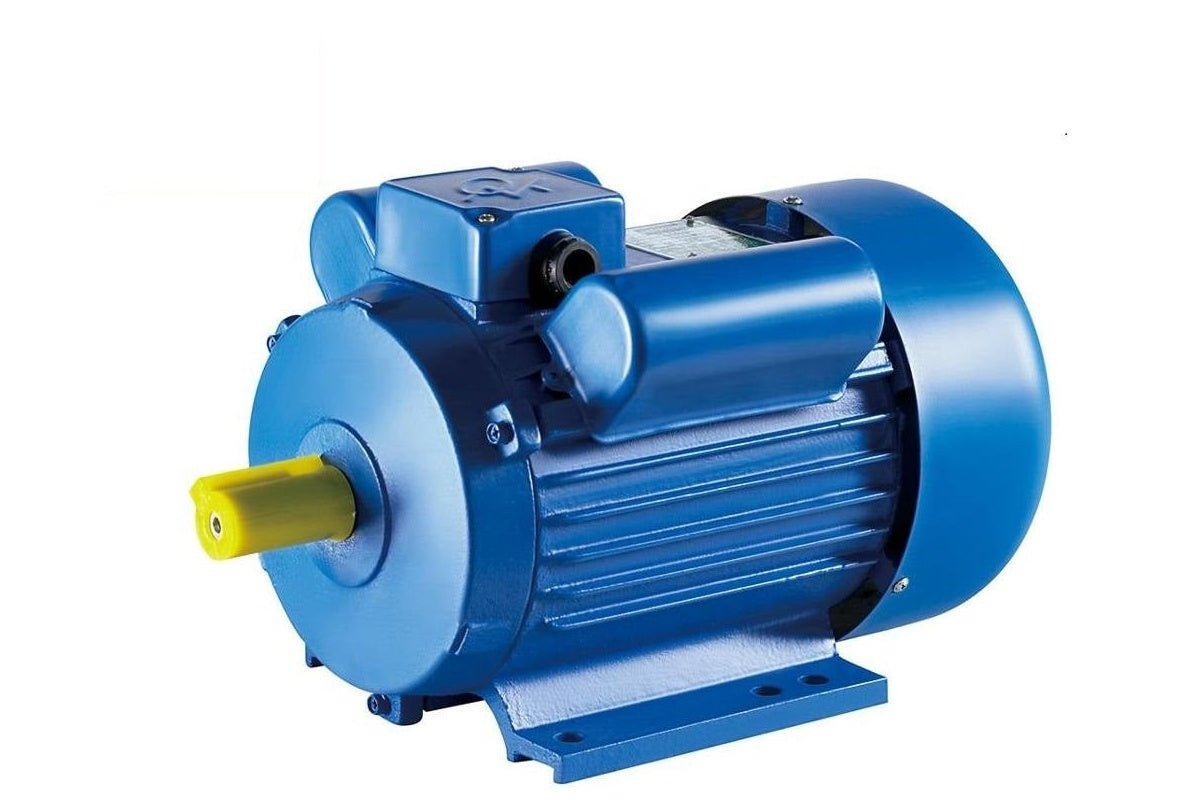

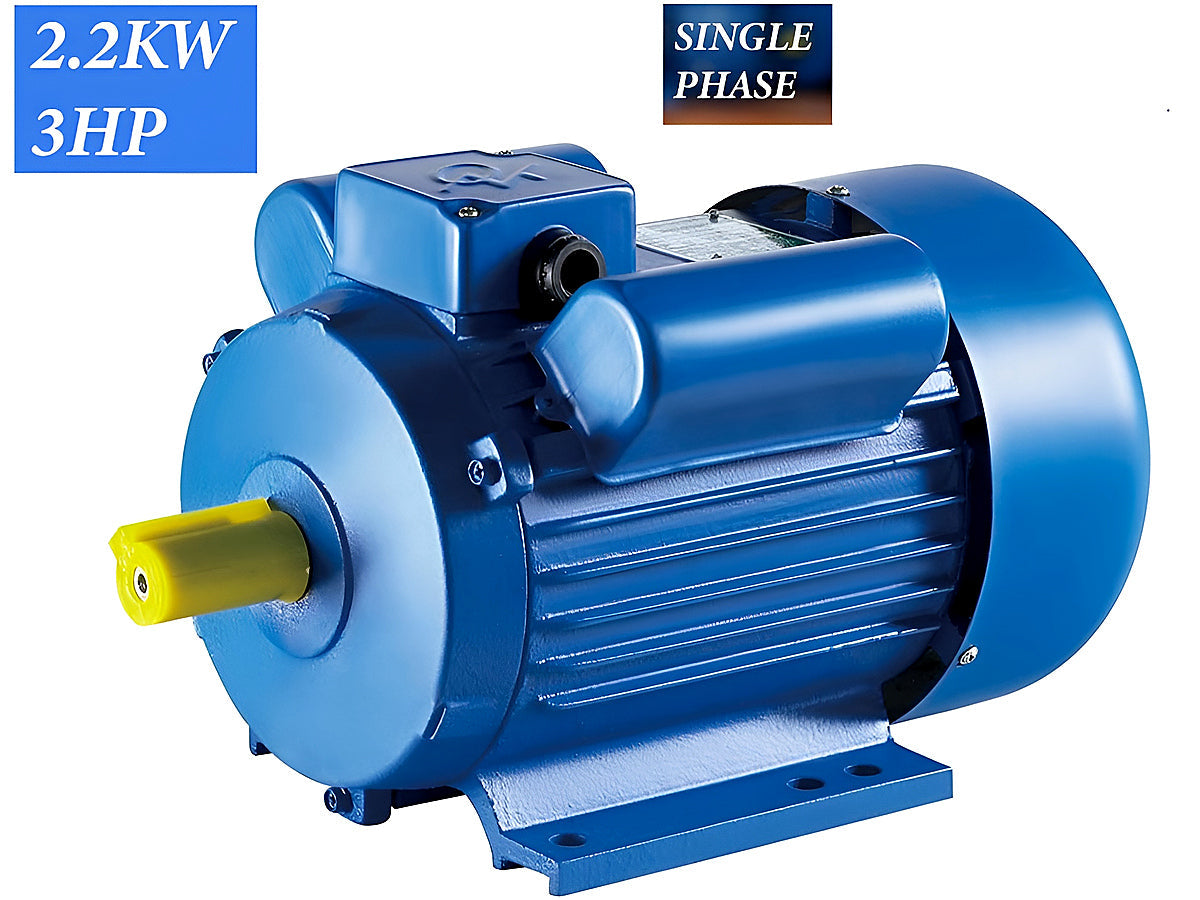

Electric Motor 3HP

Cast Iron Housing Electric Motor
Single-Phase Dual-Capacitor Motor

Horsepower: 3.0HP
Rated power: 0.22kw
Rated voltage: 230V
Frequency: 50Hz
Protection class: IP44
Insulation class: B
Rotating speed: 2800r/min
Current 13.5A
Starting Capacitor: 300 uF/250V
Running Capacitor: 50 uF/400V

These motors are widely used in air compressors, pumps, fans, refrigerators, medical instruments as well as small machines, etc. especially for the occasion where only single-phase power supply is available.
