3CFM Vacuum Pump – Single Stage 230V Direct Drive Aluminium Vacuum Pump with Backflow Prevention and Cooling Fan
The 3CFM Vacuum Pump delivers reliable air and moisture removal for refrigeration, air conditioning, and general vacuum servicing with a single-stage 1/4HP direct-driven copper motor and lightweight cast aluminium alloy body. This 3CFM vacuum pump features a built-in cooling fan for heat dissipation, backflow prevention to reduce chamber contamination, brass-fitted safety caps, front-accessible oil filling and drainage, and an ergonomic handle for portable workshop use.
Features
3CFM vacuum pump with single-stage 3CFM free air displacement output

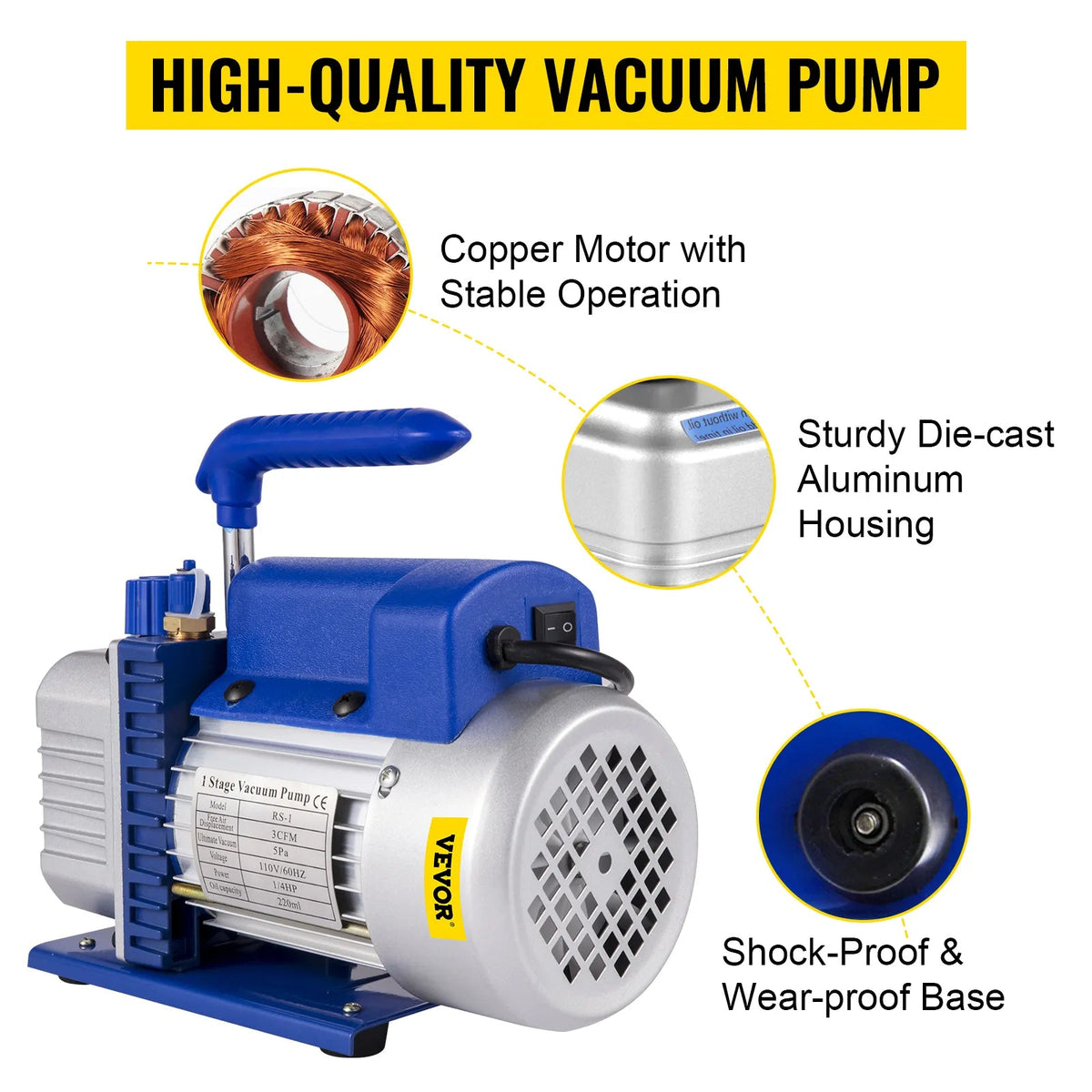

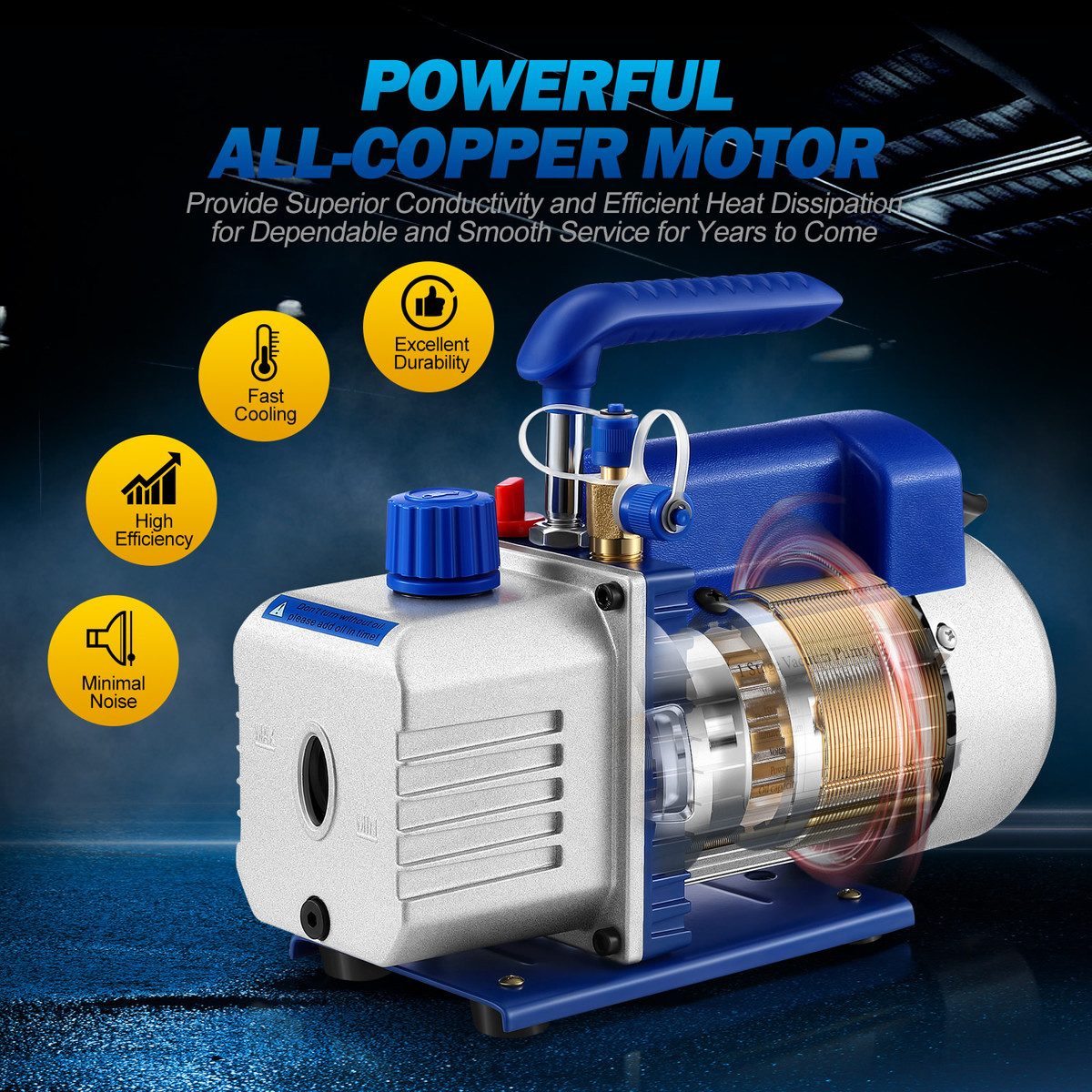

1/4HP direct-driven copper motor for reliable and easy start-up
Lightweight cast aluminium alloy body for portable 3CFM vacuum pump use

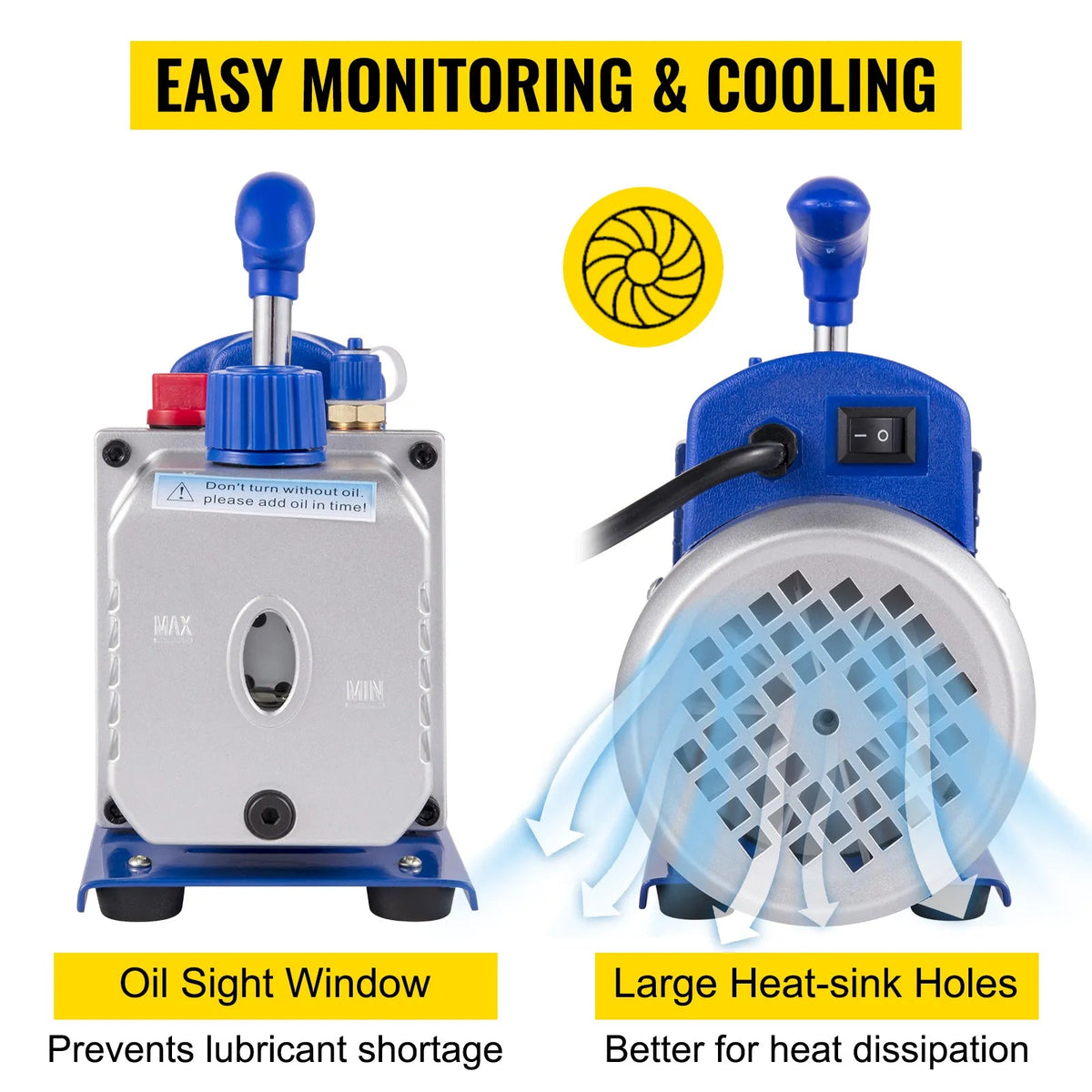

Built-in cooling fan helps manage motor temperature during operation
Backflow prevention reduces oil returning into the vacuum chamber
Brass-fitted safety caps help prevent oil leaks during servicing use
Front-accessible oil filling and drainage for 3CFM vacuum pump maintenance
Ergonomic handle for comfortable carrying and workshop portability
5Pa ultimate vacuum rating for deep and professional servicing use
230V / 50Hz input for NZ compatible power connection
Uses

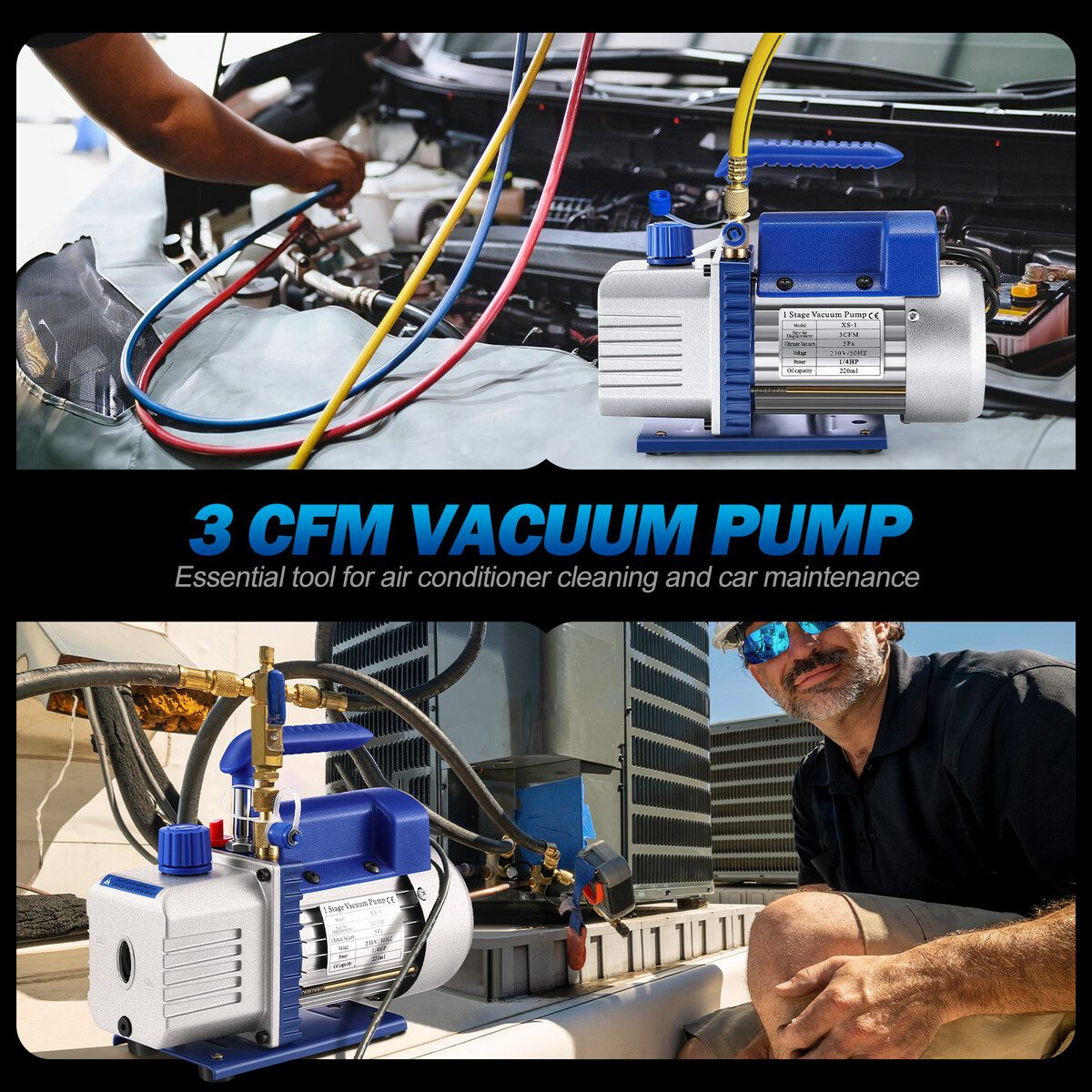

Refrigeration system air and moisture removal servicing
Household and commercial air conditioning maintenance
Automotive and general 3CFM vacuum pump workshop tasks

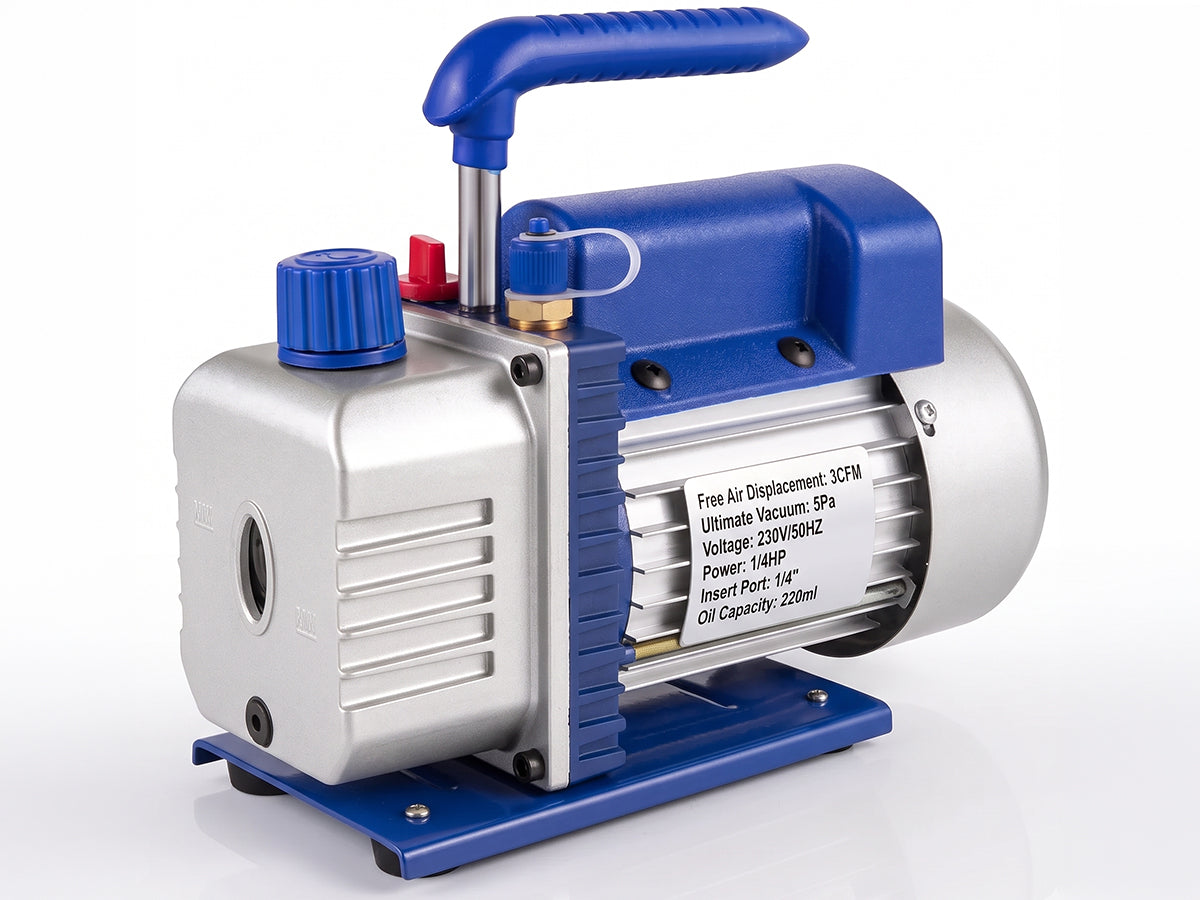

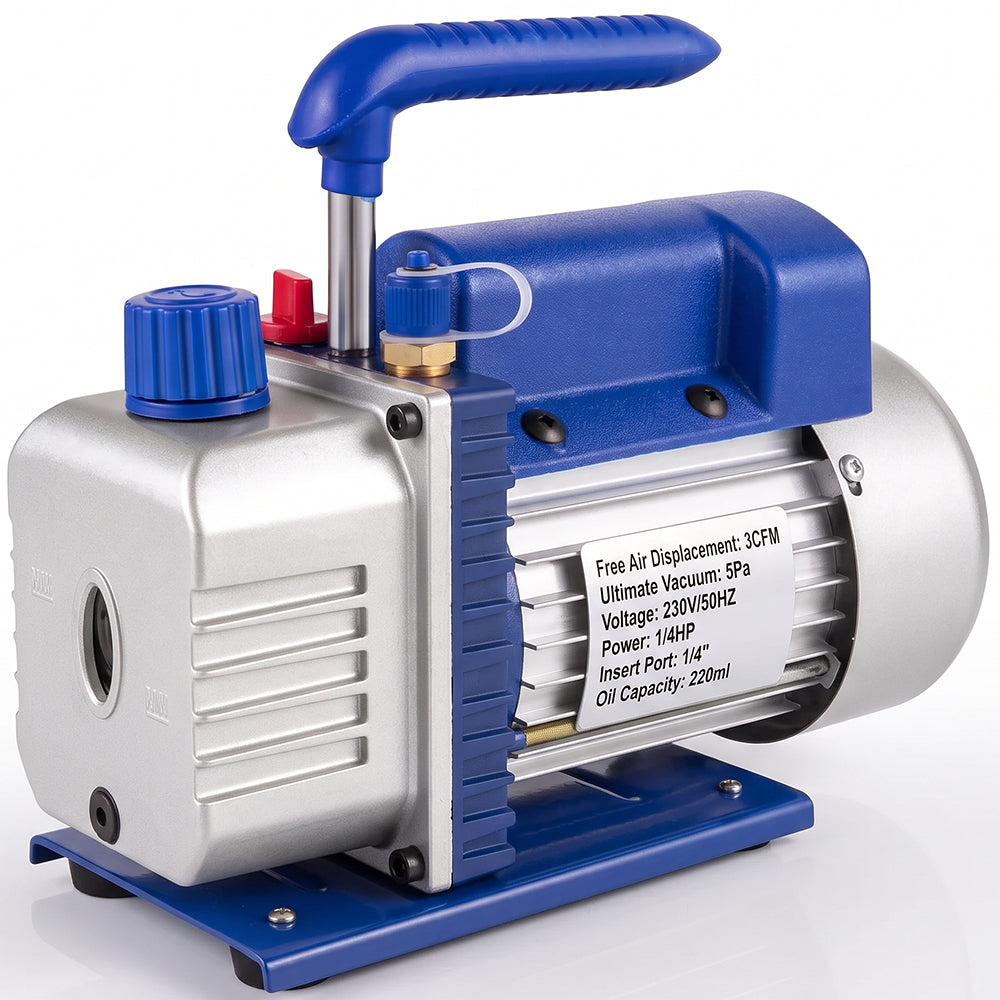

Specifications
Product: Vacuum pump
Free Air Displacement: 3CFM
Ultimate Vacuum: 5Pa
Voltage: 230V / 50Hz
Power: 1/4HP
Stage: Single stage
Insert Port: 1/4"
Intake Fittings: 1/4" and 3/8"
Oil Capacity: 220ml
Construction: Aluminium alloy
Configuration: Direct driven

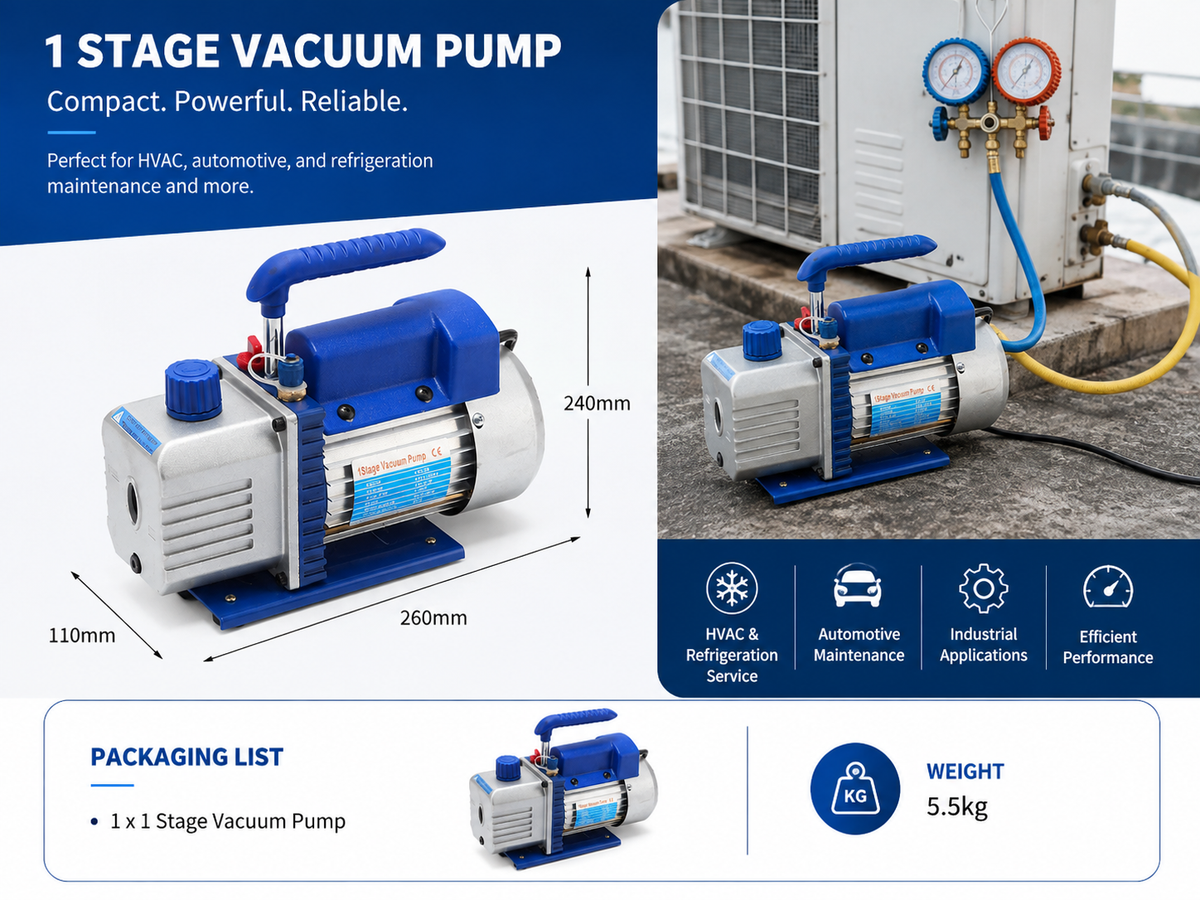

Package Includes
1 x 3CFM Vacuum Pump
Single-stage operation, 1/4HP direct-driven motor, aluminium alloy body, backflow prevention, brass safety caps, and 5Pa ultimate vacuum rating — this 3CFM vacuum pump is the compact and reliable servicing tool for refrigeration, air conditioning, and automotive workshop applications. Order this 3CFM vacuum pump today.
